| 加工定制：否 | 类型：汽车故障检测仪 | 品牌：福特原厂 |
| 型号：UCDS | 检测系统：自适应 | 电源电压：12V |
| 工作温度：-10-50℃ | 尺寸：原厂标准规格mm |
不支持在线升级，只能使用产品自带软件,我们不提供技术支持， ***替代SCT设备，***替代VCM2设备，
编程可在线编程，可离线编程。（注：钥匙不能做）国产UCDS跟俄罗斯UCDS功能一模一样。
支持的功能：
1读取故障码
2 清楚故障码
3 读数据流
4 数据记录
5 模块复位
6 模块安装
7 重新编程ECUTCMBCM等等
8 清除气囊（RCM）碰撞数据
9 读取，备份，编辑，刷写AsBuilt文件
10 读取，备份，编辑，刷写DirectConfig底层配置文件
11 支持动力提升刷写，比如蒙迪欧2.0T 200HP刷240HP，12福克斯85HP刷105HP 、150HP刷163HP
12 支持VBF文件直接刷写
13 支持BIN文件直接刷写
14 支持在线更新全车模块（Update Wizard）
15 支持福克斯MK2，12福克斯MK3，致胜，S-Max等车型仪表里程清零，刷写
福特USDS支持下列车型：
福克斯MK2(2004-2014)C307
新福克斯MK3（2012-2017）C346
翼虎15翼虎17翼虎
蒙迪欧致胜S-MaxGalaxy
新蒙迪欧13款(Mondeo5)
探险者(Explorer)
全顺
嘉年华B-Max
翼博等等各种新车型
新翼虎（为例）：
支持功能：
扫描及清除故障码,As-built文件修改仪表升级刷新及清零 ,PCM刷新及动力提升（200P 刷240P等),TCM的升级刷新，SONY CD机头的升级，ABS模组编程，RCM编程及复位 ，直接配置IPC BCMII APIM,CAN-BUS监控日志。
支持模块：
BCM II,PCM,TCM,IPC,ABS,RCM
常用功能：
DDS 胎压监控，折叠倒车镜，定速巡航，自动大灯，自动雨刷，轮胎改装，导航激活，ABS模组安装,，RCM碰撞数据清除，仪表里程复位调校。

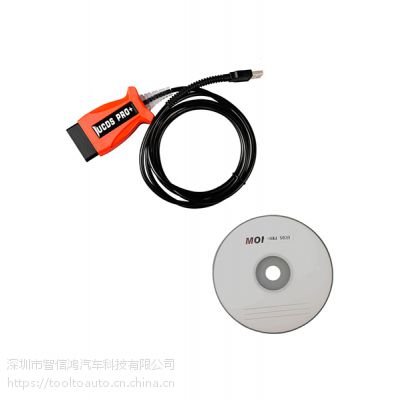

The UCDS consists of drivers of the serial bus USB-serial (recommended drivers FTDI), hardware
adapter and the actual UCDS-programm. UCDS currently works with the following platforms:
Focus II 2004-2011; Focus III 2011, 2015 ; Kuga I, Kuga II; C-MAX; S-MAX; MONDEO IV; Mondeo 2015 ;
Galaxy ; Tansit; Fiesta 2008, 20015 etc..
UCDS-Ford
UCDS-Ford New Features:
The dashboard can be displayed from English to Chinese; the new Mondeo power can be upgraded from
low to high; the navigation OPS of Escape can be flashed; the SCT program can be input; the SCT
device (token limited) can be replaced.
UCDS-Ford Functions:
UCDS allows the user to:
– Diagnose the majority of car parts and components that are connected to a central electrical module
(GEM, BCMii) through the data bus (CAN);
– Receive data embedded in the car components and modules, including their part number, version,
calibration, serial number;
– Make the necessary changes to the central configuration of the car, and change the configuration of
the modules and components if necessary;
– Update the calibration (firmware) of the modules and components of the vehicle, including the engine
(the so-called chip tuning);
– Perform regular language adaptation of the audio modules manufactured by SONY (Russian language only);
– Other…
The UCDS consists of drivers of the serial bus USB-serial (recommended drivers FTDI), hardware adapter
and the actual UCDS-programm.The software interface of the UCDS interface has main window’s mode.
You need to select the type of the vehicle or select the service mode for adapter`s firmware update or
other service functions.
UCDS currently works with the following platforms: Focus II 2004-2011; Focus III 2011, 2015 ;
Kuga I, Kuga II; C-MAX; S-MAX; MONDEO IV; Mondeo 2015 ; Galaxy ; Tansit; Fiesta 2008, 20015 etc...
